Insert molding generally consists of a preformed part—oftenmetal—that is loaded into a mold, where it is then overmolded with plastic to create a part with improved functional or mechanical properties. We currently accept inserts from PEM, Dodge, Tri-Star, Spirol, and Tappex.

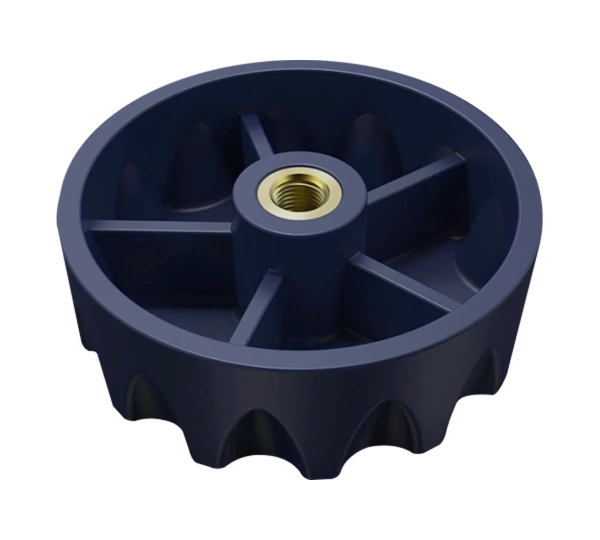

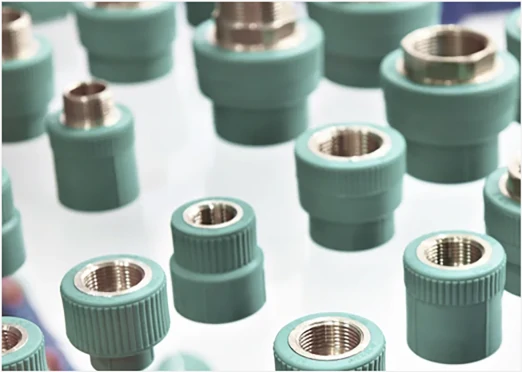

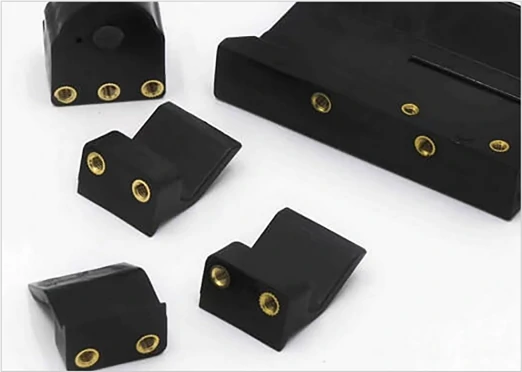

One way insert molding is used is with threaded inserts, which reinforce the mechanical properties of plastic parts’ability to be fastened together, especially over repeated assembly. Bushings and sleeves are another great way to increase part durability for mating components that need more abrasion resistance due to moving parts.
Injection molding uses a huge range of plastics, making it ideal for many applications across nearly every industry. we can source thousands of materials on request.
You can make insert molded parts all at once instead of having to do assembly after the fact.
Insert molding costs more than standard injection molding, but the costs are usually offset by the fact that you no longer need to do post-assembly.
A plastic part with a metal insert is generally lighter than an all-metal part.
Metal mold inserts will guarantee the function of threads and mitigate wear and tear over the part's life.
Because it’s a “one-shot” process, it can produce stronger parts than overmolding and other processes.
At HLH Mould, insert molding is a core process that we use to create all kinds of products for our varied clientele base. Choosing to work with us opens you to a number of benefits, and some of these advantages include the following.
Our processes are the cheapest in the market, and you still get high-quality insert molds. We handle the entire process from inception to production at discounted prices as we understand businesses need some room to breathe once in a while.
We can work with all kinds of materials to bring your concepts to life. We have state-of-the-art machinery and a qualified working staff that know exactly what they are doing, and this ensures you get what you order.
Through the use of the latest technologies and machinery, we are able to produce complex parts without any trouble with blinding speeds. All you have to do on your end is to provide the blueprints.
We have a team of qualified staff trained in all forms of the insert molding process. They will handle the product' s design and walk with you through the whole journey until the products are ready.
Insertion molding creates fully dense, smooth parts with superior mechanical performance.
Insert injection molding is best known for its unmatched production capabilities from thousands to millions of identical parts.
We offer ISO 9001, AS9100, ISO 13485, UL, ITAR, and ISO 7 & 8 Medical Clean Room molding.
Injection molding uses a huge range of plastics, making it ideal for many applications across nearly every industry. we can source thousands of materials on request.
Acrylonitrile Butadiene Styren (ABS)
Polymethyl Methacrylate (PMMA)
Polycarbonate (PC)
Polyethylene (PE)
Polypropylene (PP)
Polyamide 6 (PA6)
Polyether Ether Ketone (PEEK)
Polyoxymethylene (POM)
SPI surface finishes:We offer any type of SPI surface finish, such as A-1, D-2 or D-3.
VDI surface finishes:VDI 3400 Surface Finish (commonly known as VDI surface finish) refers to the mold texture standard set by Verein Deutscher Ingenieure (VDI), the Society of German Engineers. This is mainly processed by EDM machining, producing fine to coarse matte finishes.
From factory audits to part inspections, we follow strict processes to ensure your parts always meet the highest quality standards.
We take every measure to ensure the protection of your IP, which is why 27% of Fortune 500 companies trust us with their projects.
Our manufacturing partners have all the necessary certifications for your project's needs (ISO 9001, ISO 14001, IATF 16949, ISO 27001).
